Psion Organiser II XP or LZ
| Release Date |
1986 |
| Price |
£139.00 |
| Processor
|
Hitachi HD6303X /0.92Mhz |
| Rom |
32 kb |
| Ram |
32kb |
| Power |
9v Battery or mains adapter (50µA
- 100mA) |
| Keyboard |
36 multifunction keys providing upper and
lower case alpha, 10 numeric, 16 operatorand puntuation
keys and 4 curor keys. |
| Expansion |
Yes |
| Backlit |
No |
| Size |
142 x 78 x 29mm with the protective case
closed |
| Weight |
250g (8.8oz) |
| Screen |
Dot matrix based LCD. 2 lines each of 16
characters with 200 character set |
|
|
To View this mag Please click it |
Information
|

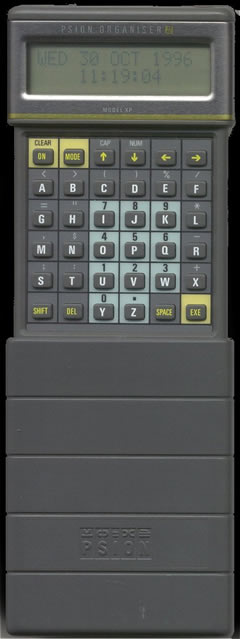

| The Psion Organiser II, model XP has a 6303 microprocessor
with two-line LCD, two slots for memory cartridges and a connector
for expansion. The keyboard is calculator-like with the keys arranged
alphabetically. There's no off key the so thje machine was switched
off by a menu command. The case is also styled like a calculator,
but it has a handy slide-on cover (not shown in the photo) to
keep the keyboard safe when the machine is not in use. |
 |
 |

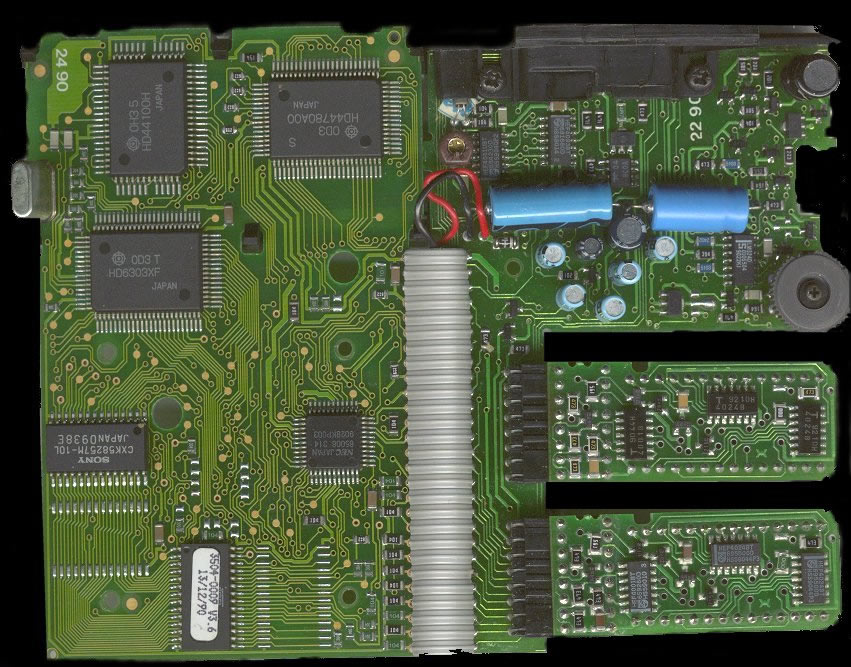

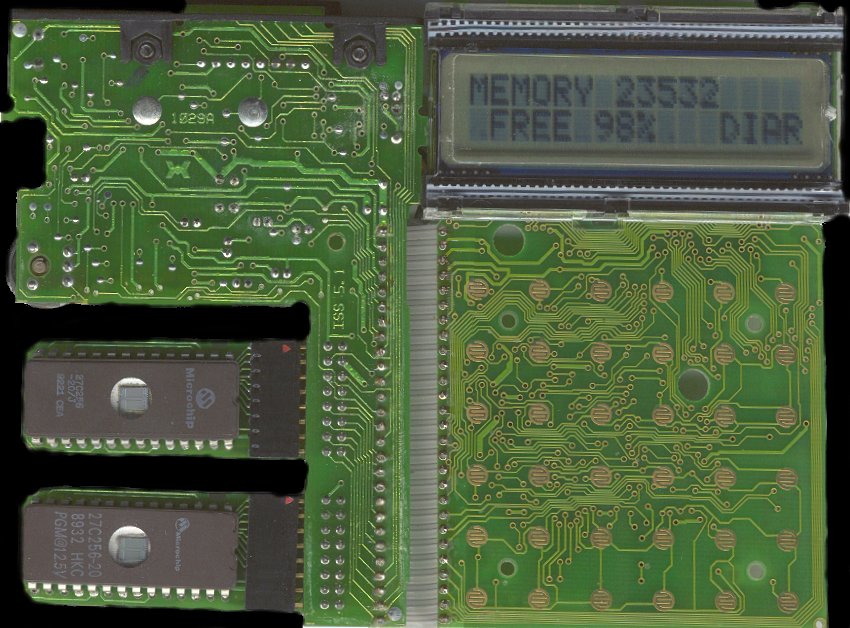

Front and back of Psion
XP with two 32k datapaks fitted |
| to see a larger picture
click the picture of your choice |
|
Software
|
|
|
Notes
|
( LZ only): File management of Notes, with sorting,
simple calculations of averages, variances, etc |
|
Cities
|
Management of 365 cities of the world with time
zone and indicative telephone |
|
Calc
|
Scientific computer functioning by key words, 10
exploitable Memories in OPL, creation of modules in OPL |
|
Date
|
Current date like stop watch, Account-with Rebours,
management of the summer-time |
|
Cards
|
Powerful data base with Sorting, 8 inputs maximum by cardsAnd
other functions that I would do to enumerate
|
|
Programming
|
Programming language OPL (Operating PSION Language),
derived from the BASIC, also possible programming out of assembler
|
|
Test
|
Which Psion II you have click here |
|
The Manual
|
Click
Here |
|
Programing
|
Programming
on the Psion Organiser |
Where can I obtain and
other Usefull Items
|
Computer fairs: The
Show Guide
|
I Have 20 of these for sale on a first come first serve
basis costing £25.00 Plus pastage and packaging.
I also have around 30 32k data blocks for sale at £3.50
per item
All donations go to the Bleanau Gwent Access Group for the
disabled
Please contact me for the cost of the postage and packaging.
|
| For more information contact
me and I will try
to assist you |
